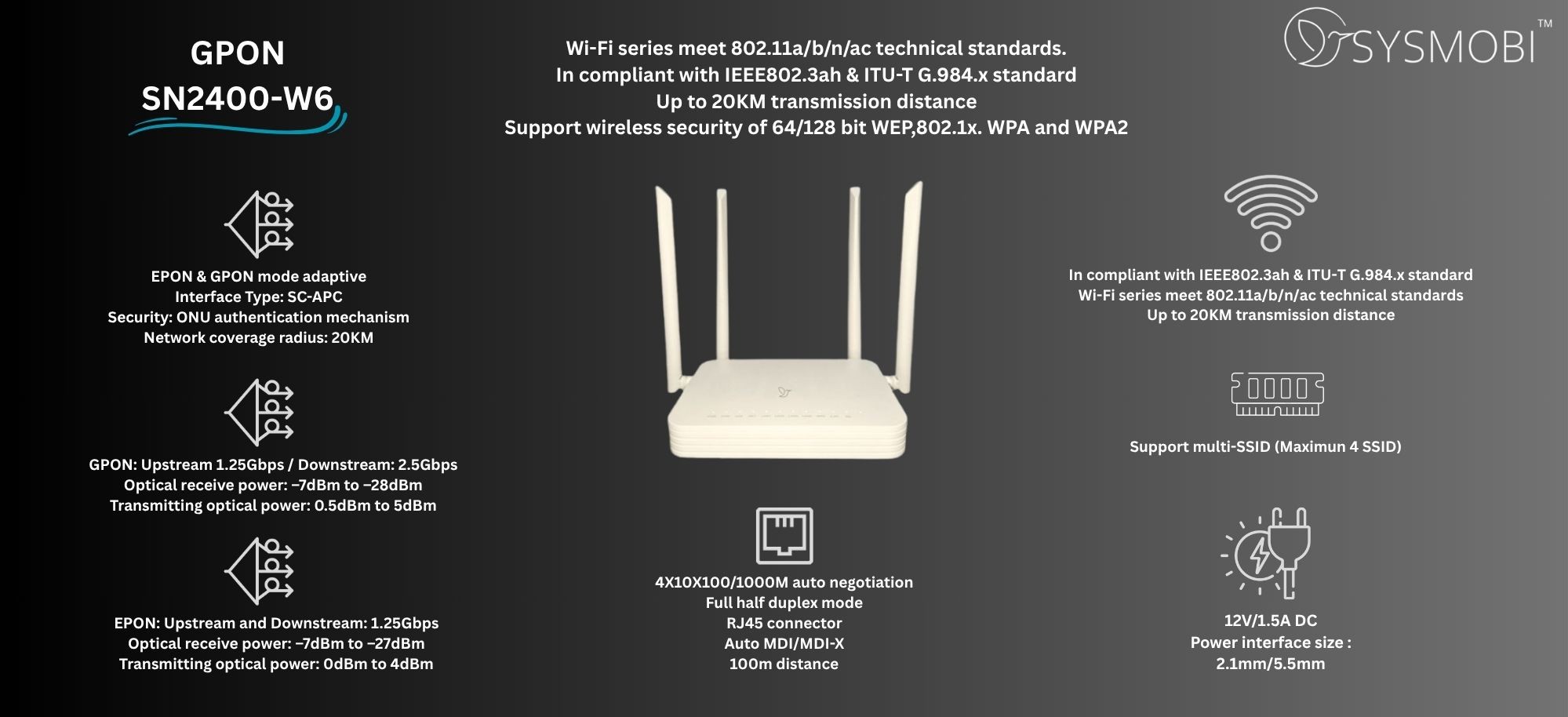

SN2400-W6

4×10/100/1000M Ethernet interface(RJ45)
1 EPON & GPON adaptive interface
2.3 WIFI & 5G WIFI
Support wireless security of 64/128 bit WEP,802.1x. WPA and WPA2
Support IPV4/IPV6
Support TR069 for ACS(Auto Config Server)
Support multi-SSID (Maximum 4 SSID)

● 4 ports: 10/100/1000M RJ45
● EPON & GPON mode adaptive
Interface Type: SC-APC
Security: ONU authentication mechanism
Network coverage radius: 20KM
● GPON: Upstream 1.25Gbps / Downstream: 2.5Gbps
Optical receive power: –7dBm to –28dBm
Transmitting optical power: 0.5dBm to 5dBm
● EPON: Upstream and Downstream: 1.25Gbps
Optical receive power: –7dBm to –27dBm
Transmitting optical power: 0dBm to 4dBm
